Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

  • 1
  • 2
  • 3

Brand Name : CCSC

Model Number : Top-entry Check Valve with 2 inch and 3 inch

Certification : API 6A

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Delivery Time : 30-40days

Packaging Details : Plywood box

Size : 2" , 3"

Working Pressure : 6,000-15,000psi

Flow Condition : H2S, Standard

End Connection : Hammer union

Processing type : Forging

Color : All color

Contact Now

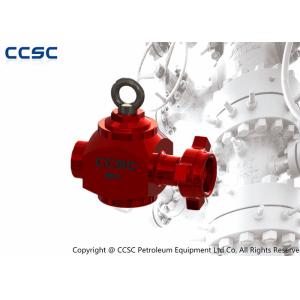

API 6A high pressure Top-entry Check Valve with 2 inch and 3 inch for Inline Check Valve

Top-entry check valve provided by CCSC is forged by hight strength alloy steel,it's used to stop the return flow from high pressure piping,our to-entry check valve are available in size 2 inch and 3 inch,15,000psi working pressure,with fig1502 hammer union end connection.

CCSC top entry check valve is designed to be compatible with FMC Weco top entry check valve based on technology imported from FMC. To ensure the quality, our top entry check valves are forged by the high quality alloy steel. All processes including forging, machine, and heat treatment are strictly controlled and full trackable in according with API 6A, API 16c and Q1, as well as NACE-MR-01-75 (sour gas service)


Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi

Features
• Forged Body
• Simple structure,the internal parts can be inline changed
• With clear flow direction inditification mark.

Top Entry Check Valve Compostion

Hydraulic Inline Check Valve Top - Entry Type Working Pressure 6,000-15,000psi
  • 1. Body
  • 2. Gate
  • 3. Retainer pivot pin
  • 4. Alignment pin
  • 5. Pivot pin
  • 6. Body Cap
  • 7. Detachable nut union
  • 8. Retainer segment
  • 9. Retainer ring
  • 10. Lifting boit
  • 11 - 14. Oring
  • 15. Seat ring
  • 16. Seat
Available Specification
Nomal Size, in Working Pressure, psi End Connection Flow Condition
2 15,000 Fig1502 M X F Standard
3 15,000 Fig1502 F X M Standard
